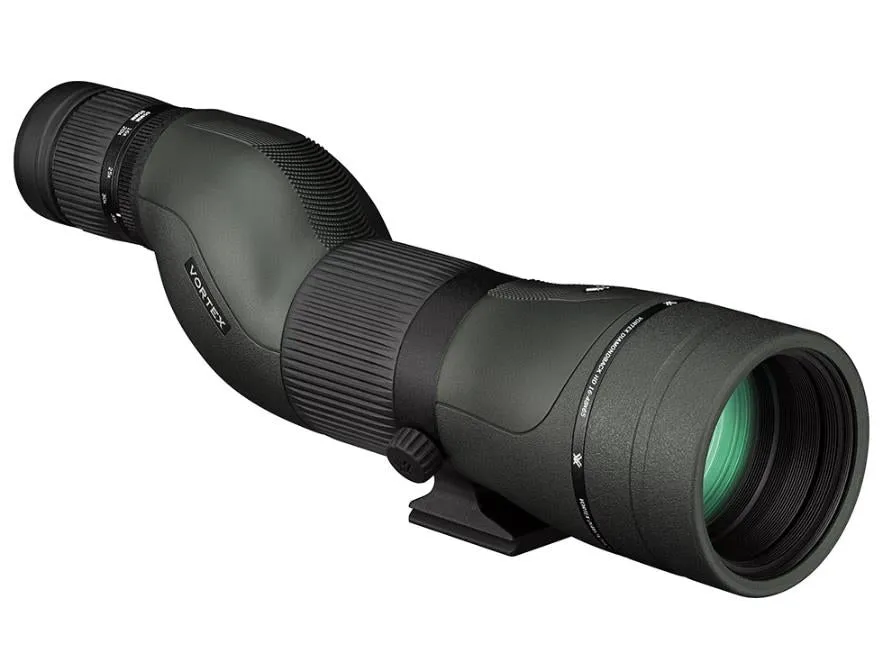

Vortex Diamondback HD 16-48X65MM Straight Spotting Scope

Glassing out west demands an HD optic, but other systems can’t get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover.

The redesigned Diamondback HD spotting scopes have all the horsepower the long-distance hunter needs, and they excel in low light—right when you need it most. We’ve also streamlined the exterior for a sleeker, snag-free profile, building in a helical focus wheel.

For the biggest hunt of your year, or your third time out this season, the all-new Diamondback HD spotters deliver the power to focus on the thrill of your hunt.

PRODUCT FEATURES

OPTICAL FEATURES
HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.

Fully Multi-Coated
Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

CONSTRUCTION FEATURES
ArmorTek
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.

Shockproof
Rugged construction withstands recoil and impact.

Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.

Rubber Armor
Provides a secure, non-slip grip, and durable external protection.

CONVENIENCE FEATURES
Adjustable Eyecup
Twists up and down to precise, intermediate settings to maximize custom fit for comfortable viewing with or without eyeglasses.

Helical Focus
Allows for fast and fine adjustments.

Arca-Swiss Compatible
Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads.

Tripod Adaptable
Allowing use on a tripod or car window mount. Tripod adapter required.

Rotating Tripod Ring
Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.

Built-in Sunshade
Reduces glare and shields the objective lens from raindrops and snow.

Specifications

Magnification: 16 – 48 x
Objective Lens Diameter: 65 mm
Linear Field of View: 138 – 72 feet/1000 yards
Angular Field of View: 2.6–1.4 degrees
Close Focus: 16.4 feet
Eye Relief: 20.3–18.3 mm
Exit Pupil: 4.0–1.35 mm
Length: 13.75 inches
Weight: 50.4 ounces

Included in the Box:
Neoprene cover
Tethered objective lens cap
Tethered ocular lens cap
Lens Cloth
