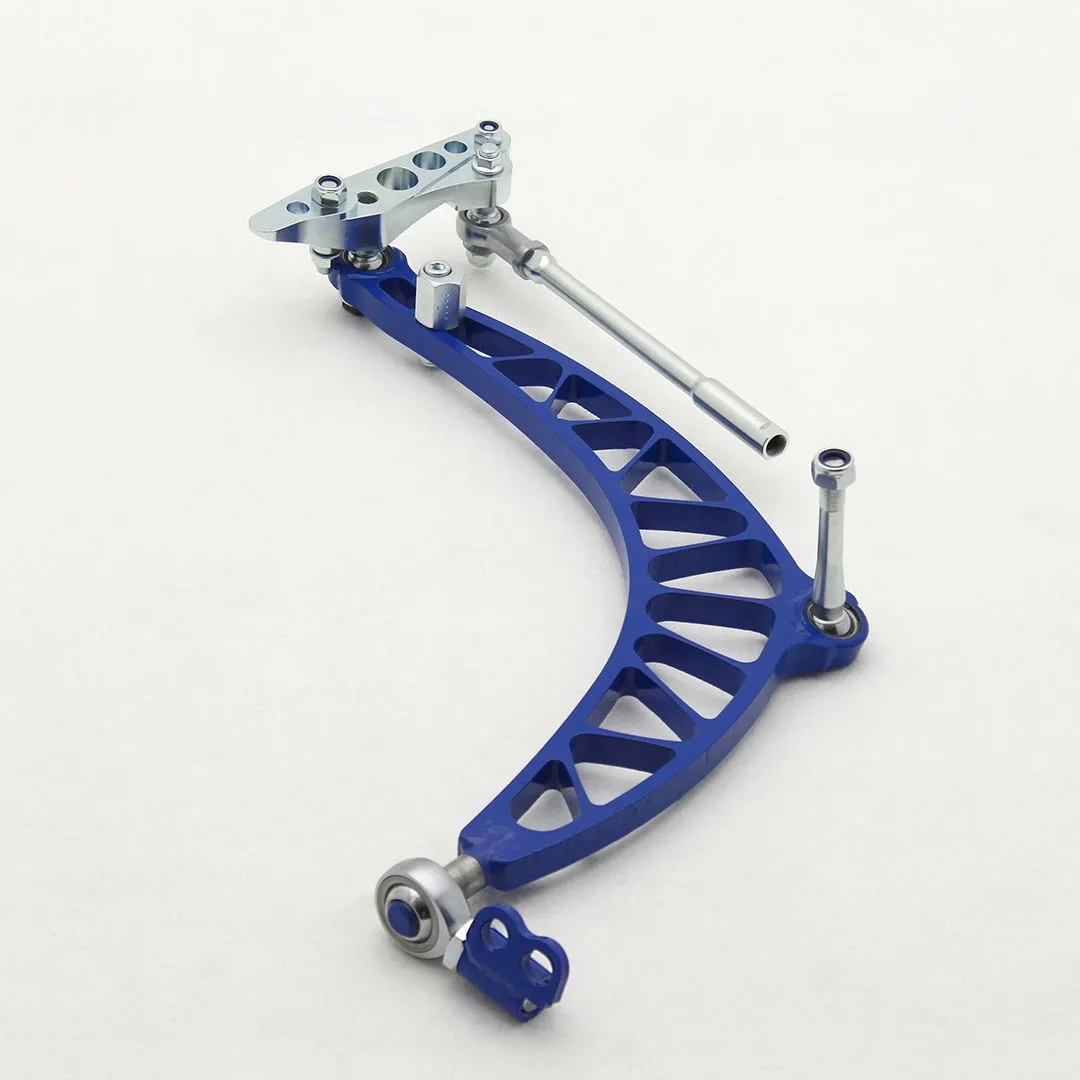

Wisefab BMW E30 angle kit has over 60 degrees of lock. The most important parameter that everybody is speaking in drifting is lock and Wisefab excels at it! E30 control arms are light yet strong. Very easy to install because E30 lock kit is out of the box bolt on solution. Set your desired toe in and enjoy. All the parts on the lock kit are provided as spare parts.

Recommended alignment parameters:
Toe in/out: 0
Camber: -7
Caster: 8

• Higher roll center
• Wisefab suspension kit brings the front roll center up on lowered cars, providing higher roll stiffness and letting to remove the front anti roll bar (swaybar) enabling maximum usable lock.
• Revised steering geometry (Ackermann)
• Normally in a corner the inner wheel has a greater angle than the outer. For drifting this means loss of speed and grip and Wisefab has corrected this for best performance.
• Good camber control with high steering angles
• With high steering angles the leading wheel will have a positive camber, which is not a positive effect. It reduces the front grip and during turn or flip it creates a contact patch transition from inside edge to outside edge. It is not possible to eliminate it, but with Wisefab geometry it has decreased as much as possible.
• Steering jacking control
• During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. Wisefab has monitored it and changed the geometry that it doesn’t cause any handling issues.
• Predictable self-alignment control
• With certain suspension geometry at high steering angles it could happen that the steering wheel is locking up at the end and driver needs to apply some force to flip it to other side. Wisefab understands what causes it and has decreased it to minimum, if not eliminated it.

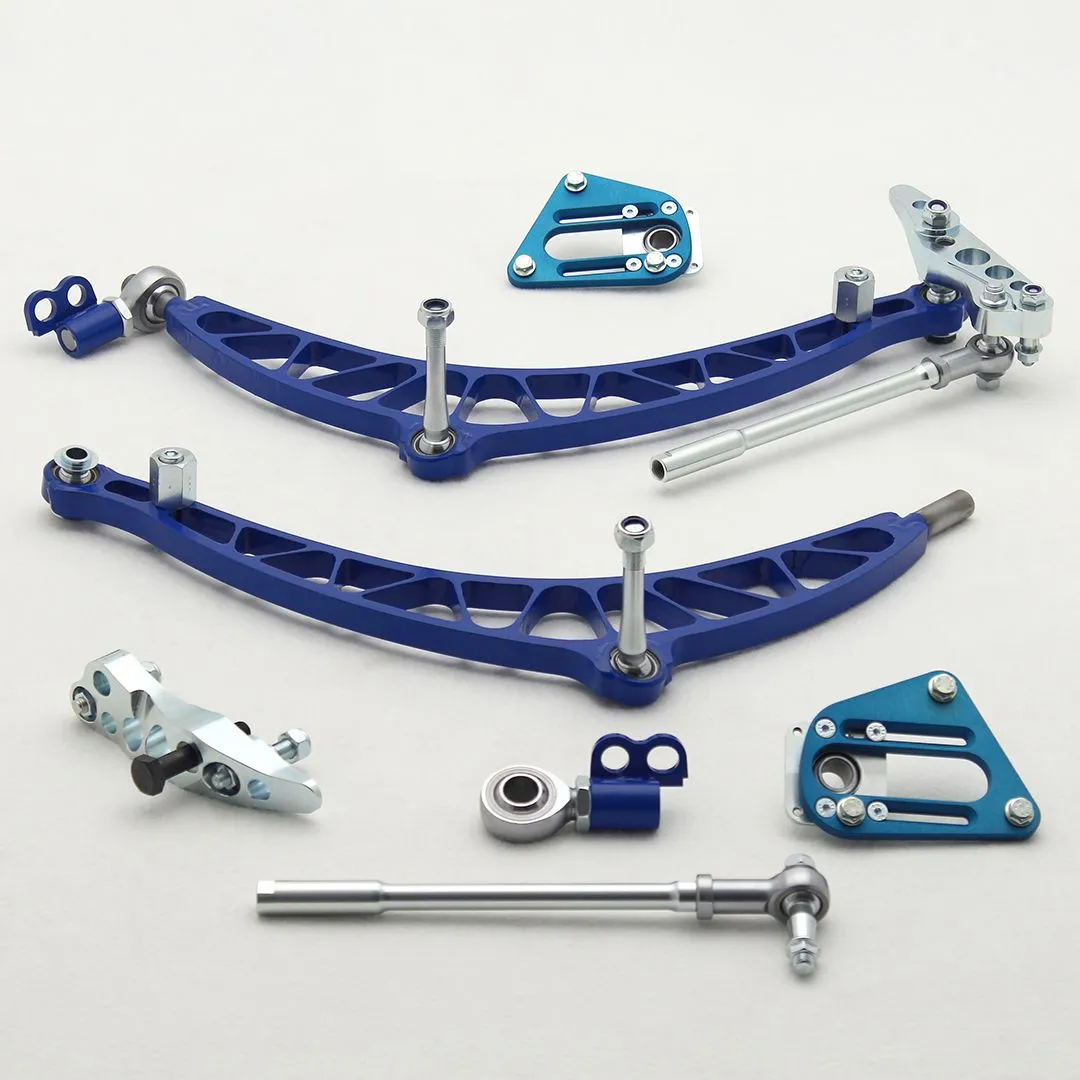

Kit includes:

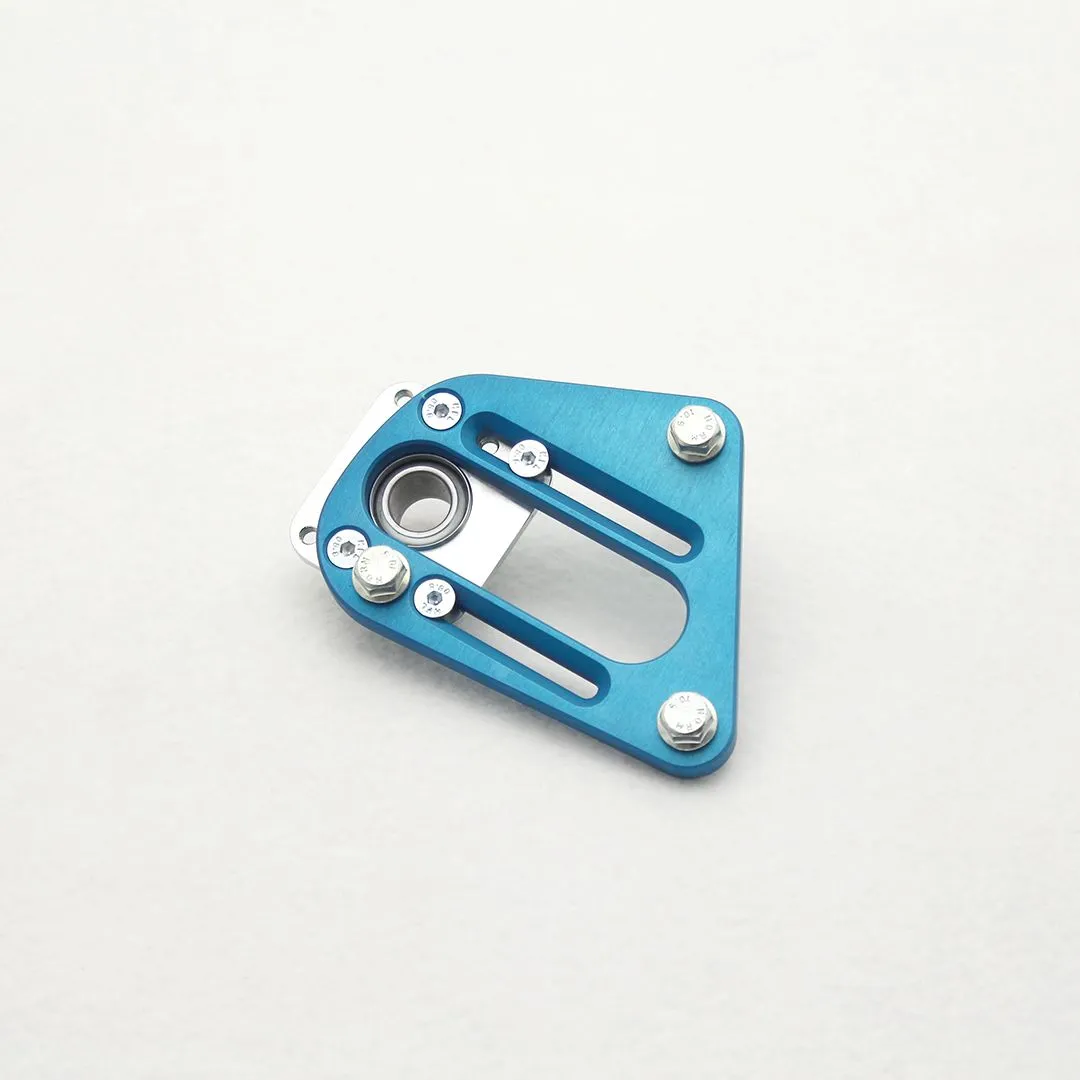

• Adjustable coilover upper mounts, Formula Drift compliance.

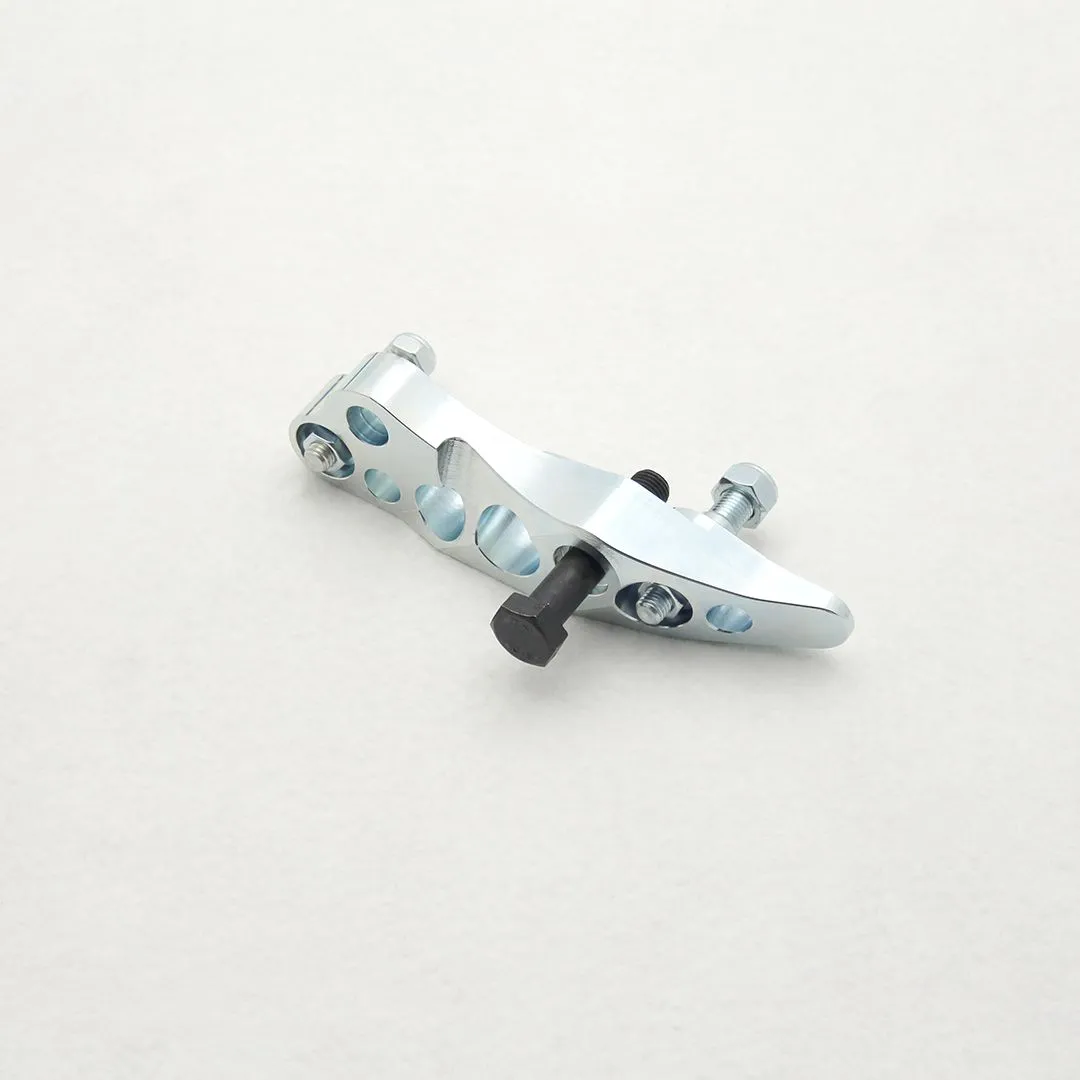

• Hub add-ons with hardware.

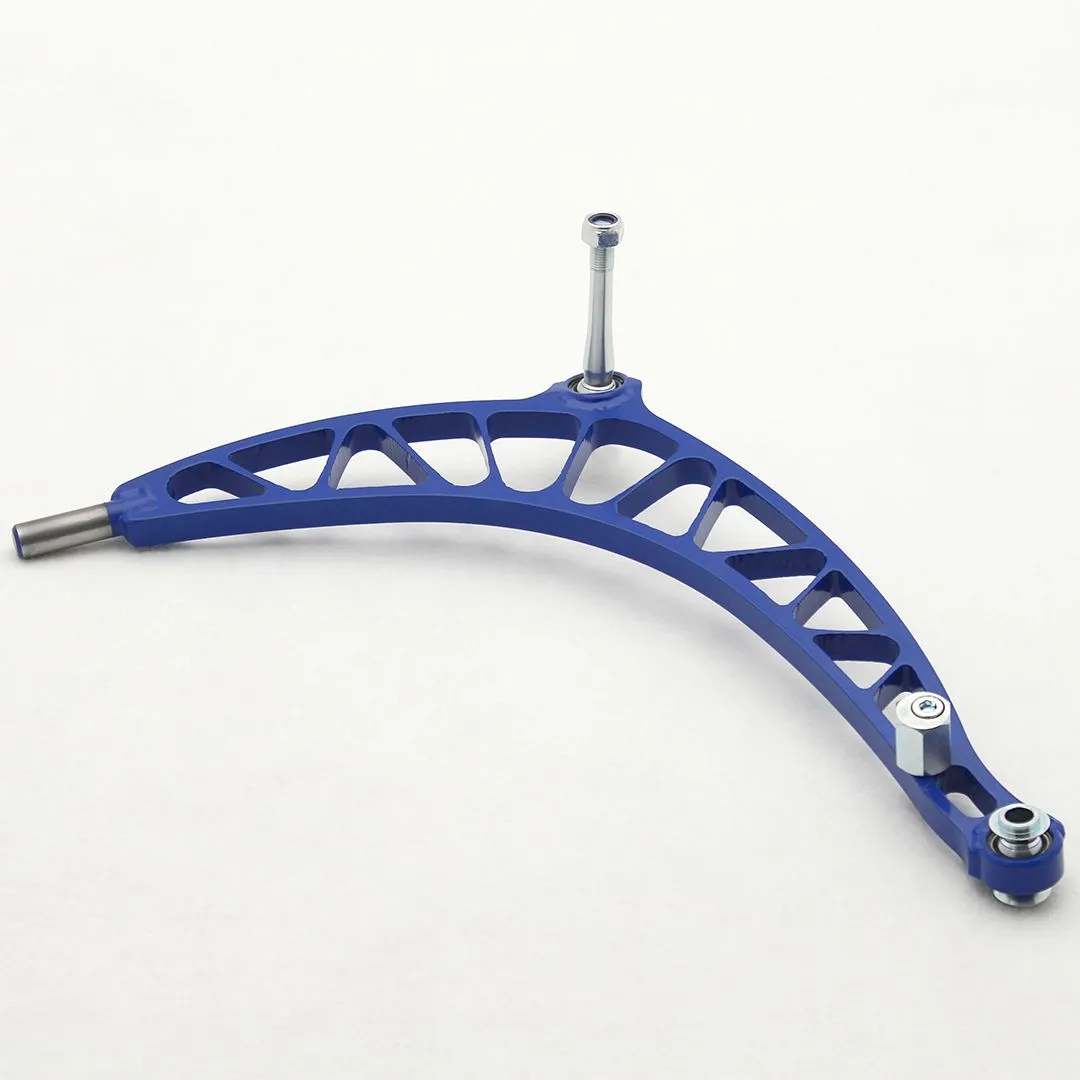

• Lightweight lower control arms.

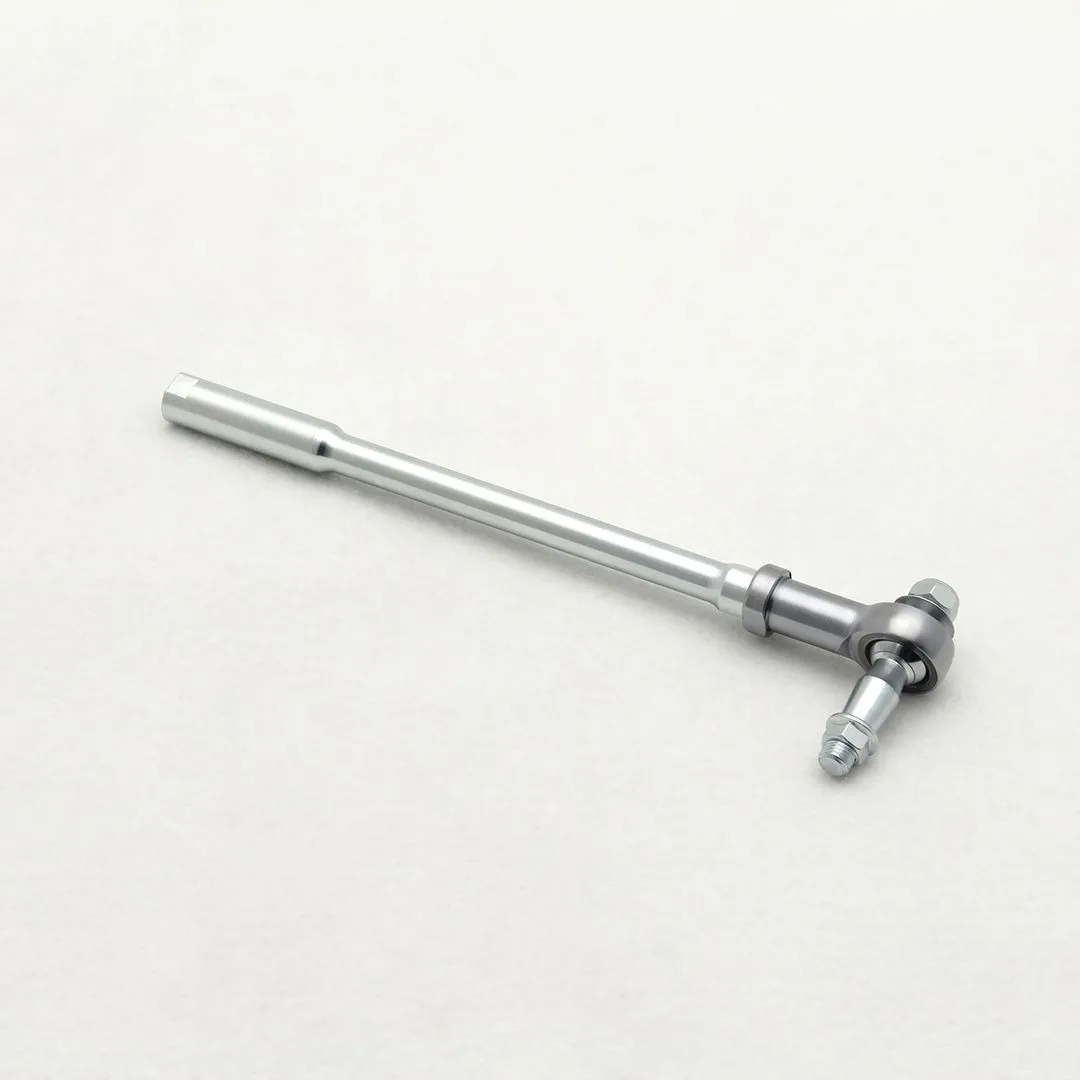

• Assembeled tie rods.

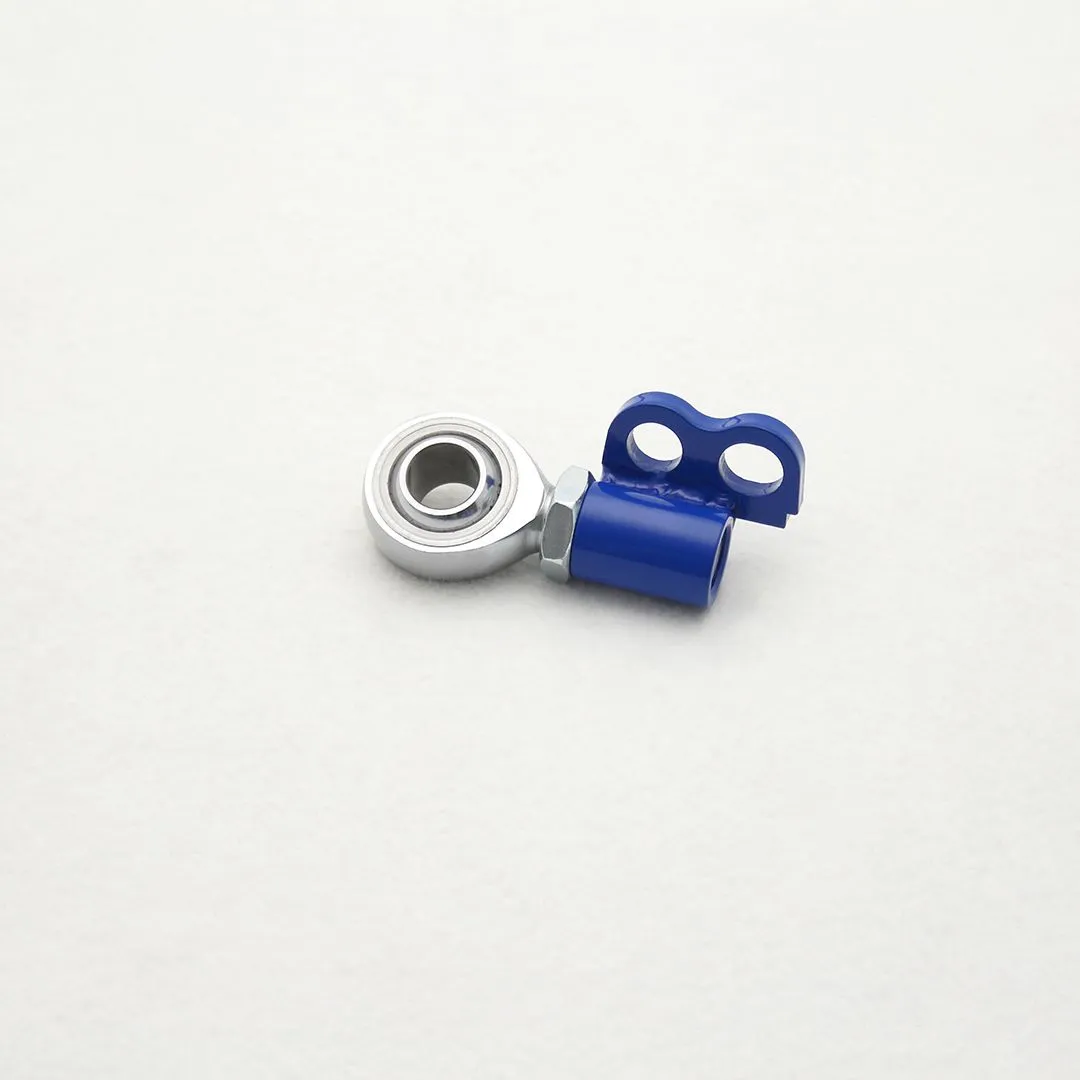

• Adjustable lower control arm rear mount.
• Installation guide.

Other components, packaging and clearance:

• BMW E36 Inner tierods required.
• This kit assumes coilovers to have enough clearance.
• Wisefab recommends tire diameter not bigger than 620mm (235/40 R17).
• Wider fenders or fender flares needed with this kit.
